Converting Run Times to Cycling Times for Low-Key Hillclimbs: Part 3

Last time I described the procedure for constructing a look-up table for time conversion for road segments of a particular road grade. The road grade is the result of taking the route profile for a course, extracted for example from barometric altimetry + GPS data (Garmin Edge 500, Garmin Edge 800), and convolving it with a smoothing function to reduce grade changes which occur over substantially less distance than 25 meters. The approach is based on an equation fit to data from Minetti, et al, published in the Journal of Applied Physiology in 2002.

Here's the model, where metabolic cost is measured in energy per unit distance. Although metabolic heat is more conventionally reported in calories, I prefer joules in order to facilitate conversion between power, work, and heat. I assumed running for grades up to 12%, and walking for grades larger than 12%, which is consistent with my typical practice (perhaps not Gary "the" Gellin, who could run up a sheer vertical wall and still do sub-9 minute miles).

dE/ds =
a0 +
a1 (g' + g'0)2 +
a2 (g' + g'0)4 +
a3 (g' + g'0)6
where I define:

g' = grade / sqrt[ 1 + grade2 ]

and where I derived the following heuristic model parameters:
a0 = 1.68 J/m/kg a1 = 54.9 J/m/kg a2 = −102 J/m/kg a3 = 200 J/m/kg g'0 = 18.4%

To convert cycling power to metabolic cost, I assumed a 3% drivetrain loss rate, and I assumed a cyclist metabolic efficiency of 25.7%, which is the lowest value which avoids the bike rider requiring a greater rate of metabolic cost than the runner at the same road grade given the idealized assumption of zero bike weight and zero drivetrain efficiency. However, here I take a slightly different approach.

The retarding force from wind resistance is typically modeled as 1/2 ρ Cd A v2, where ρ is the air density (typically approximately 1.15 kg/m3), Cd is the coefficient of wind resistance, A is the cross-sectional area, and v2 is the square of the bike or runner speed. For the cyclist, I am going to arbitrarily assume a CdA of approximately 0.45 m2 per 75 kg of body mass, while for the runner, I will assume Cd of approximately 0.8 with an area of approximately 0.75 meters squared, totalling 0.6 m2 for the same 75 kg of body mass. So the runner, by virtue of an upright position, will have more wind resistance, and will typically be wearing less aerodynamically efficiency clothing, although he is spared the wind drag of a bicycle. For runners, the key question is how to convert this wind drag to merginal metabolic cost. For that I can just assume a marginal metabolic efficiency. 25% seems a good choice, so that's what I used.

For cycling, I assumed a CdA of 0.45 m2 for a 75 kg cyclist. I estimated a rolling resistance coefficient of around 0.4%. I set extra mass, including bike and clothing, to a modest 12% of the body mass (9 kg). I then assumed the cyclist could sustain 5 W/kg, which yields an Old La Honda time of just over 17 minutes.

As I noted last time, I asserted at high speeds the cyclist is retarded by safety considerations, which I applied as follows:

v → (v−4 + vmax−4)−1/4 .

Here's the resulting pace in minutes / km (I like min/km ore than min/mile because it makes calculation of times for 10 km races simple, perhaps except for a fractional minutes-to-second conversion):

min/km
bike and run
calculated minutes per km for model cyclist and runner. I assume the runner can do just under 4 min per km (4.3 meters/second) while the cyclist can sustain 5 W/kg (17-minute Old La Honda). I then scale runner speeds using my analytic fit to Minetti's metabolic cost data, adjusted for estimated wind resistance with a 25% metabolic efficiency. For the rider, I assume a climb-like bike position for wind resistance with 12% of total weight taken up by the bike + clothing.

As expected, the cyclist at negative and zero grades has a substantial advantage, but as the road gets steeper, the runner does better relative to the cyclist. Here there is no cross-over point, unlike my last calculation where the conversion between runner and cyclist was based on an assumption of metabolic efficiency However that approach substantially overestimated what speed I would be able to sustain up Old La Honda, so for this calculation the more heuristically based criteria for setting cyclist and runner speeds independently (I still used a metabolic efficiency for the small correction to runner speed due to wind resistance in still air) resulted in lower running speeds, and therefore the cyclist in this case is able to sustain an advantage to the 20% in the plot.

It appears from the trend as if the runner will eventually catch up to the cyclist pace but in fact this isn't the case due to the nonlinearity in the metabolic running cost with road grade. This is optimistic about the ability to sustain power on a bicycle at extreme grades, however. Eventually traction becomes an issue, and likely gearing becomes limited, unless you're riding a bike like Dan Guttierez's Fargo-Road-climbing-custom (video). But then who says you're not? My model shouldn't assume you're riding an inappropriate machine for the road.

Anyway, I then calculated a score conversion factor for running scores. As I noted, rather than rely heavily on my ad hoc assumptions about what speeds a model runner versus a model cyclist can sustain, I constrained the score conversion to 1 at a 12% grade. The result is here:



min/km
bike and run
Score conversion factor for runners versus road grade. Actual roads will be adjusted on a segment-by-segment basis using full profile data (with Gaussian smoothing). While specific assumed cycling and running speeds were used to generate this curve, the effect of these assumptions was only on wind resistance, and therefore for climbs the affect on the conversion factor is small. The dashed line is for equal time, the solid line adjusts for the runner taking more time and thus facing greater fatigue than the cyclist (for the grades on the plot). Each curve is independently normalized to 1 at a 12% grade.

What I'm missing in the dashed line in this plot is the effect of endurance, however. I started by assuming cyclists could sustain a given power and runners a given flat road pace, but of course they can't do that indefinitely. However, such a pace cannot be sustained indefinitely. Looking at world record times, there is a trend that these speeds fall around 5% every time the time required is doubled. I can model that as speed is inversely proportional to distance (at a given grade) raised to the power ln(1.05)/ln(2). There's a minor issue whether the 5% applies to doubling of distance or time. I'll assume time. That means to get an exponent to apply to distance I need to solve self-consistently, which can be done analytically via the transformation of the exponent k

kd = kt / (1 - kt )
where kt is the exponent for time and d is the exponent for distance. So in my application speed is changing over the course due to grade, but on constant grade I initially assume constant speed, so instead of kd here I can use initially calculated time. So what I do for endurance is to take a reference time at which the assumed flat-pace or power can be sustained, then assume that pace applies to any distance, then once I've calculated a power I multiply it by the ratio of the initially calculated time to the reference time raised to the power calculated to yield my 5%/factor-of-two-time speed loss, which is 0.0757.

The effect of the endurance adjustment is shown as the solid line in the preceding plot. For relatively flat or descending routes, the runner takes more time relative to the cyclist than he would on the reference 12% grade, and therefore his speed will be relatively degraded by the assumed 5%/factor-of-2-in-duration rate of decay. The effect is 5% total for when the conversion factor reaches 2 (which is what it is designed to do).

So that's it. All I need to do next is test it on a real hills.

Thursday, November 29, 2012

Converting Run Times to Cycling Times for Low-Key Hillclimbs: Part 2

To convert times for running to an "effective cycling" time the approach I want to take is to convert the running time to a cycling time of similar metabolic cost. Minetti measured metabolic cost for running on a treadmill tilted at different angles. This completely neglects wind resistance, yielding the running analog of rolling resistance, overcoming gravity, and drivetrain efficiency:


Minetti

For cycling I have the standard equations, which I won't fully enumerate here. But in still air there's a wind resistance component proportional to area, air density, and speed cubed, a gravity component and a rolling resistance component each proportional to weight (gravity and mass), speed, and the sum of the road grade and the coefficient of rolling. Additionally there is a drivetrain loss component which is typically if inaccurately modeled as proportional to total power (in reality the fractional loss decreases at higher power).

There's several levels of approximation I could use. First, there's the issue of wind resistance, Wind resistance depends on speed, and so if I were to carefully model wind resistance I would get a different conversion factor for each runner based on his speed. But this adds needless complexity given the uncertainty in the model parameters, so I'll assume typical values for running and cycling speeds to account for the wind resistance effect.

Then there is what to use for the road grade. One approach is to use aggregate statistics for the climb. But while that is certainly simple and would be a substantial improvement on status quo, I feel I should do better: there is a substantial difference between a climb and descent, with zero net altitude gained, versus a flat road with zero net and gross altitude gained. So I will analyze the road on a piece-by-piece basis. But road grade has something of a fractal character: the closer you look, the more it varies, so I will smooth the road by a 25 meter bi-exponential smoothing function first.

The approach is then the following:

  1. Smooth the road grade with a bi-exponential smoothing function of length 25 meters.
  2. For each segment of road, calculate a metabolic cost per unit weight per distance for running.
  3. Estimate the time taken to run that segment as proportional to the metabilic cost multiplied by the distance.
  4. Calculate the time taken to ride the same segment, in steady-state, under the assumption of constant propulsive power. For this I need an assumption of rider propulsive power. The time should be modified on steep descents since riders tend to brake or coast for safety reasons.
  5. Sum up the course times for running and cycling.
  6. Adjust times for speed lost from event duration for runner and cyclist (I'll discuss this later).
  7. Calculate a ratio of running time to cycling time.
  8. Apply a scale factor to establish a desired balance of running versus cycling scores.

The issue of metabolic efficiency is important. When I used a similar approach to estimate my running time up Old La Honda Road, I got a substantially optimistic result, faster than even Gary "the" Gellin was able to pull off during a Low-Key Hillclimb. The metabolic efficiency question is an important one.

But whatever I pick for metabolic efficiency, there is the additional question of score balance. I want Low-Keys to be a cycling event, not a running one, so cyclists should generally score higher then runners.

For the metabolic efficiency of running versus cycling, I'll bypass the issue to some extent. For running, I can assume metabolic cost per unit time is constant, and thus speed is inversely proportional to metabolic cost per unit distance. There is a calibration factor to be determined, but to get this I just need to assert a given speed on flat roads. For example, 4.2 meters / second corresponds to a 39.7 min per 10 km, or 1:23:43 per half-marathon. Then for each road-grade I self-consistently solve metabolic cost of wind resistance and speed. For the incremental metabolic cost of wind resistance I'll arbitrarily assume a 25% marginal metabolic efficiency. Since wind resistance is approximately anyway, higher precision is pointless. So the sequence is solve total metabolic cost under an assumed speed, revise speed based on total metabolic cost, repeat.

For cycling, I simply set a target sustained power of 5 watts / kg. But since riders are typically presented by technical challenges on steep downhills which require some braking, this approach overestimated downhill speed. I set an arbitrary speed limit of vmax = 20 m/sec, which is 72 km/hr or 44.7 miles/hr. After I calculated a speed under full power, I did a transformation to get a final speed:

v → (v−4 + vmax−4)−1/4 .
This adjustment results in a certain amount of technically-related speed loss at all speeds. For example at an ideal speed of 50 kph it reduces actial speed to 47.5 kph.

These calculations give me a best-effort prediction of the relative speeds of runners versus cyclists for each road grade, assuming running at that pace and cycling with that power are comparable achievements. However, to use this conversion factor directly would balance running and cycling scores. I don't want to do that, since I want this to be a series where the focus is on cycling, not running. So the obvious remedy is to scale effective running times by an additional factor.

Rather than simply pick an arbitrary factor, a better approach is to attempt to emulate the present scoring, in which runners are scored on the same scale as cyclists, for some target road grade. So I will pick such a road grade and apply an additional adjustment factor on top of the one based on the ratio of best-estimate running speeds in order to bring the net adjustment factor to one. Note there will already be a grade at which the predicted speeds will equal. But as I previously showed, this grade is relatively steep, for example 15%. So by setting my reference grade to a smaller value, one at which cyclists are still at an advantage, I retain the cyclist focus of the series.

The steepest sustained road we've done is probably Metcalf Road, which averages 11.6% over the portion which maximizes its climb rating (using my rating formula). So I think that's a good reference grade to use. For steeper sections of climb, runners effective times will be increased (slower), while for more gradual sections runners effective times will be decreased (faster).

I'll run some numbers next time.

Wednesday, November 28, 2012

Converting Run Times to Cycling Times for Low-Key Hillclimbs: Part 1

In the Low-Key Hillclimbs this year, cyclists were scored using a factor to adjust for how spread out they were in time. On steeper climbs, riders tend to be proportionately more spread out, but on more gradual climbs, they tend to be more closely bunched together. Rather than apply a correction explicitly based on any particular characteristic of the road, a "slope factor" was derived from the rider data to yield a similar statistical distribution for any pair of weeks for riders doing both weeks.

This worked well for cyclists, but we also allow runners in the Low-Key Hillclimbs. We don't want it to turn into a running race, with teams recruiting runners to boost their scores, so instead of scoring runners on their own scale we score runners the same as their time would have been riding. Since only on extreme grades is running faster than cycling, this results in runners scoring relatively less. It's fun when running to do as well as one can against the riders, but it's recognized in advance it's overall a losing battle.

This was okay until this year, when we intriduced a "running division" in the overall score. This was a side-effect of introducing a tandem-specific division: it forced me to extend my scoring code to accomodate riders switching divisions one week to the next, and once I'd done that for tandems, it was absolutely trivial to extend it to runners. Since I was training for the California International Marathon this Low-Key season, it additionally gave me a competitive outlet without compromising my running focus.

The problem is that runners do not behave simply like slower cyclists. At some grade, for example 15.7% in an analysis I did previously, runners and cyclists may be similar: cycling is more efficient but the rider must carry the extra weight of the bicycle. On the other hand, on flat ground a cyclist can cruise along at close along at 1.5 minutes / km or 40 kph, while for a runner will be around 2.5 times slower (3.75 minutes per km). So the steeper the grade, the better things are for runners.

This was made evident in this year's series. In week 7, Bill Bushnell did a brisk hike up Kennedy Fire trail, shooting photos. Five days later Matt Allie ran 29.6 km in 2:23:10 up Mount Hamilton. That's a 1:42 half-marathin pace for a longer distance. Yet Bill scored more points for his walk. That is what it is; the scoring is designed for cyclists, with runners a relative side-show. But if runners merit a separate division, I owe it to them to equalize the scores week-to-week somewhat.

The approach I'll take is based on the measured metabolic cost of running. I already described this when I looked at data from Minetti. Here's that plot. I'll go more into it next time.



Minetti

Tuesday, November 27, 2012

Montara Mountain from Grant Ranch dirt climb

Dirt climbs are fun, and while I've not ridden up this one (I've hiked it, and I've ridden down part of it), I decided to make a profile for it since it was recommended to me by a friend.

Montara Mountain is often overlooked when cyclists think of large climbs in the Bay area. The reason is that unlike many other large hills, there's no paved roads to the top. However, this was not always the case, and the "Planet of the Apes" route follows what was the inland road ("San Pedro Mountain Road") between Pacifica to the north and Half Moon Bay to the south. This road was replaced by the Devil's Slide portion of Highway 1, and nature quickly asserted control. The "road" is now in many places little more than single-track, it's paved past evident only in broken patches of crumbling asphalt.

This route begins at Grant Ranch, the southern extreme of Planet of the Apes. It then climbs steeply to a "Y", a left the route to Pacifica along San Pedro Mountain Road, the right the route of interest here, to the mountain summit. From there it's fairly straightforward until a dirt path to the left rises sharply to the summit viewpoint.

A Strava segment is here:

The profile shows just how challenging this route is:

profile My rating formula, which gives a big weight to extended sections a significant multiple of 8% grade (altitude gained at steady 20%, for example, counts 12 times as much as altitude gained at steady 8%), rates it 242 on the "Old La Honda = 100" scale.

Monday, November 26, 2012

posts per month to this blog

This year I went through a bit of a slump in posting to this blog: I was involved in a coding project which in the end turned out to be essentially unsuccessful since I had issues with dealing with the Strava API I was unable to resolve, and other priorities took over. In any case, I still had things I wanted to say here, so went back to posting after the slump.

Here's my accumulated posts each year, by month, since I started way back in 2008:
posting per month

I'm never sure for how long I'll go on with this, but I find it personally valuable to go back and see what my perceptions and feelings were at various points in the past. For example, 2008 was when I first started running after a long, long delay, and I like going back and reading race reports I posted then. Or I refer to equations I derived relating factors such as mass, aerodynamics, and rolling resistance to cycling speed.

I'll stick to it to some degree as long as I find it valuable. Facebook and Twitter, which have largely replaced blogging as an activity, don't do this nearly as well.

Sunday, November 25, 2012

Black Road + Skyline to Castle Rock

Typically climbs are up a single road (like Old La Honda Road), or up a relatively unambiguous path to a summit (like Diablo North Gate Road to Summit Road). But in the San Francisco Bay area, like many other places, there are often ridge roads into which roads up the hillside intersect. As Baird Webel pointed out to me when I was at Stanford, these side roads will typically seek out relatively low points in the ridge, so by turning when hitting the ridge road, the climb can be extended. He wasn't claiming this as an opportunity, but rather as a fate: don't take the ridge road for granted as the top of the climb. Another Baird quite, "We need to descend into that?!?!", when looking down into the smog-shrouded Silicon Valley was similarly memorable, but that's a digression.

Anyway, I typically ignore these sorts of options as "climbs". From the top of Old La Honda Road, for example,the climb can be extended without much traffic interference by turning right on Skyline Boulevard, climbing further to the peak before the descent to the store (and nearby Alice's Restaurant). I've never made a continuous targeted effort all the way to the summit. Old La Honda is what it is and that's the climb: the longer climb isn't "better" due to being longer. Rather it's a dilution.

But one section of Skyline is particularly challenging for Skyline, and that's the climb from Black Road to Castle Rock State Park. The thing about Skyline climbs is they are so easily underestimated. Skyline is a ridge road, after all, and as Baird was referencing, once you've reached the ridge road there's a tendency to consider the hard work over. A climb on the ridge road, even if it's substantially less challenging than the climb taken to reach it, nevertheless may be the coup de grace on tired legs.

This is what happened to me during the Sequoia Century 200 km ride in 1994. We'd climbed Mountain Charlie Road to Summit, which is a southern extension of the ridge road, then ridden north through a hilly narrow section of Skyline before arriving at Black. There the road begins an uphill slog to Castle Rock, gaining approximately 192 vertical meters (630 feet). With fresh legs and expecting a climb that's a nice little challenge, but finishing up the climbing of a 200 km ride with 3000 meters of total climbing, it can be a long, slow grind.

So I crawled up the hill until finally the grade relents and one reaches the rapid descent to the Highway 9 junction. Soon after we reached the ride's final rest stop at the fire station, where to my amazement there was an electric blender spinning up delicious smoothies. It was one of the most delicious smoothies I've ever had, given the context, and with it my fatigue disappeared for the final rollers to Page Mill which we descended in conjunction with Moody Road to reach the finish.

Anyway, that section of Skyline is a good climb. And since it begins at the top of Black Road, the most challenging single road to Skyline Boulevard, it makes for a nice combination. Black gains close to 11% sustained over two nice chunks, with some respite at the Lakeside school in between. A nice alternative to upper Black is heavily switchbacked Gist Road which connects to Skyline in between, but Black by itself is a tough climb on its own.

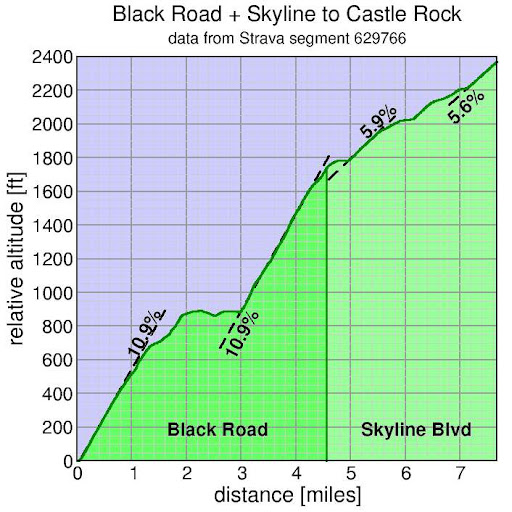

Here's the profile:

profile

I ran these climbs through my rating code and I get the following. Note the rating formula is not linear: two climbs together need not have the same rating as the sum of the component climbs (this nonlinearity is by design, as I think it matches perception: a gradual climb situated between steep climb segments may actually subtract from the total rating, even if the gradual climb itself has a positive rating):

Black Road             : 150% Old La Honda
Skyline to Castle Rock :  31% Old La Honda
total climb            : 170% Old La Honda

The Strava KOM is presently held by Adrien Costa, the 2012 Low-Key Hillclimbs solo male rider champion.
